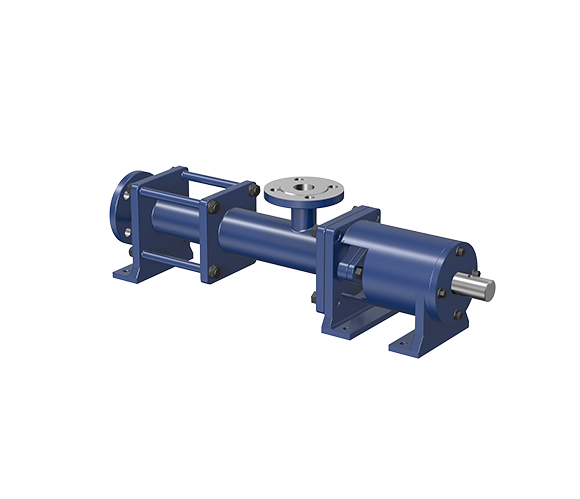

G series single screw

2023/8/7





1)Specificities
Strong versatility, compact structure, long service life, low noise and vibration, high efficiency, smooth operation, easy maintenance, low noise and vibration.

Divided into different models such as direct coupled and bearing seat type, etc., stable flow and pressure, wide range of applications, suitable for high or low viscosity fluids, containing fibers and solids fluids, etc.



2)Application Medium

Thick oils, pastes, emulsions, slurries, wastewater, etc.




4)Main performance range


  Pump Model:   G25-85
  Flow:
  0.75~130m3/h
  Running Pressure:
  Upper limit up to 18 bar
  RPM:
  120~970r/min
  Working temperature:
  ≤150℃
  Medium:
  Aerated or bubble-prone liquids, liquids containing solids or fibers
  Viscosity of the medium:
  1~250000mm2/s
  Noise:
  ≤86dB(A)
  Rotor material:
  Customized on demand
