2023/7/10
1)Specificities
Strong versatility, compact structure, long service life, low noise and vibration, high efficiency, smooth operation, easy maintenance, low noise and vibration.
Stable performance, easy maintenance, short flow channel, compact structure, pumping medium can contain particles
2)Application Medium
Gums, slurries, lipids, dairy products
3)Synopsis
This series of products are widely used in harsh working conditions and can convey media containing slight particles. The product adopts low rotational speed plus frequency conversion speed control, which can steplessly adjust the output flow of the pump, and the shorter flow channel can effectively avoid the cohesion and blockage of materials.
4)Main performance range

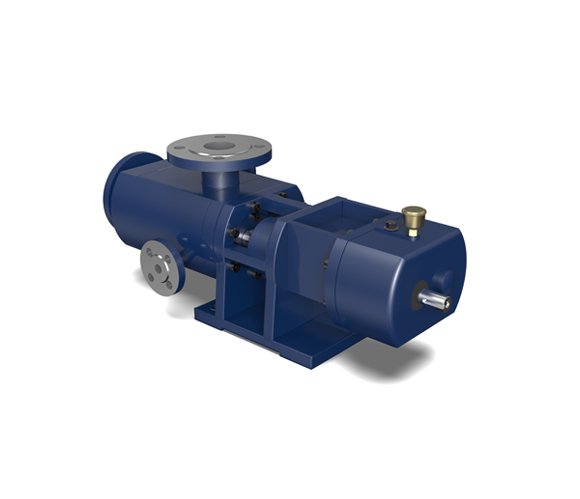

Pump Model: |
W2G78-208 |
Flow: |
1.5~175m3/h |
Running Pressure: |
Upper limit up to 10 bar |
RPM: |
50~950r/min |
Working temperature: |
≤250℃ |
Medium: |
Gums, slurries, lipids, dairy products |
Viscosity of the medium: |
1~100000mm2/s |
Noise: |
≤86dB(A) |
Rotor material: |
304、38CrMoAl、40Cr |
